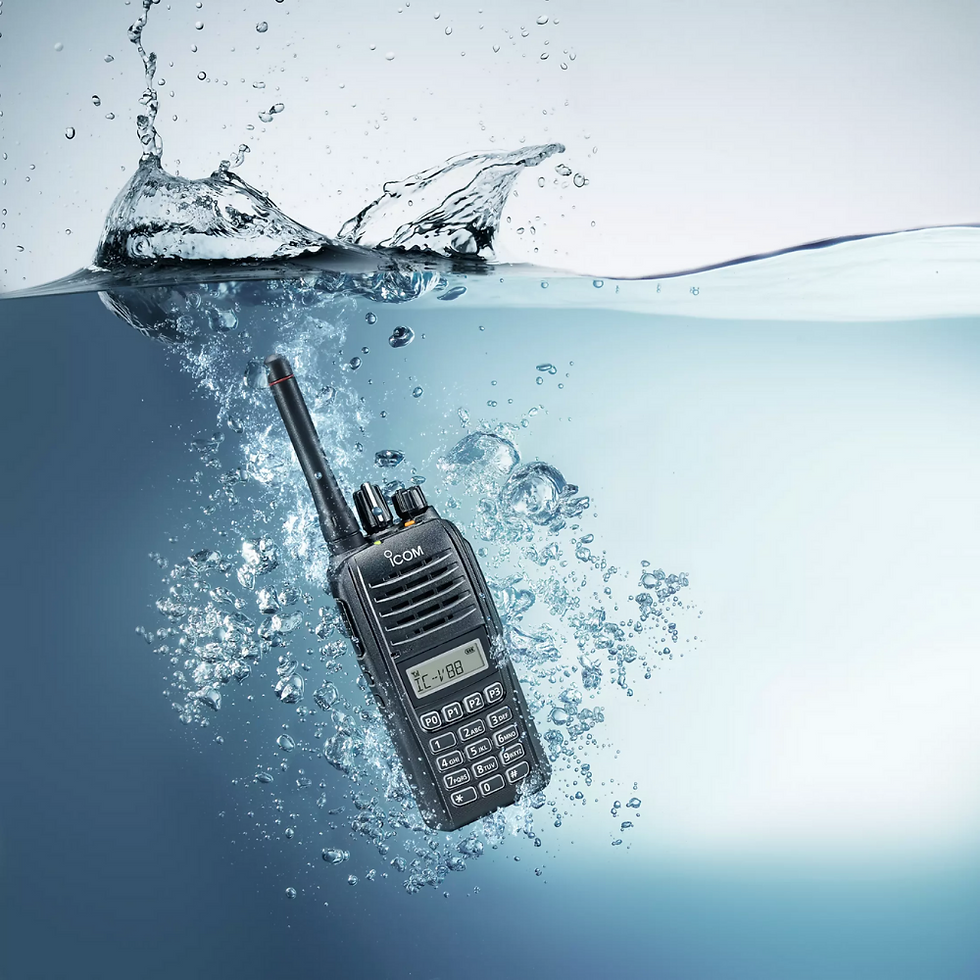

Icom IC-V88 VHF FM Handheld Transceivers
PRODUCT HIGHLIGHTS: SUITABLE FOR DRRM's, BARANGAY SECURITY, DISPATCHES, SECURITY AGENCIES, UTILITY, AMATEUR RADIO, LAND MOBILE, CIVIC ACTION, COMMERCIAL. Compact, Waterproof Professional Radio with 1500 mW Powerful Audio Icom custom high power handling capacity speaker for 1500 mW powerful audio IP67 waterproof and dust-tight protection 5.5 W/4 W (VHF/UHF) of output power Up to 10 hours of operating time with the supplied waterproof battery or more than 20 hours with optional battery pack 128 memory channels and eight zones Eight character alphanumeric display Built-in CTCSS and DTCS encoder/decoder Eight DTMF autodial memories MDC 1200 PTT ID and BIIS 1200 PTT ID Inversion voice scrambler (16 code) for private conversations Channel announcement of the operating channel number Seven programmable buttons with Shift key function 16 scan lists and priority scan functions Hands-free operation with the optional headset
SPECIFICATIONS: Frequency coverage: VHF 136MHz–174MHz Type of emission: 16K0F3E, 11K0F3E (25/12.5kHz) Number of channels: 128 channels Antenna impedance: 50Ω Power supply requirement: 7.5V DC Operating temperature range: −30°C to +60°C (Radio only) Frequency stability: ±2.5ppm Current drain(approx.): Tx High 1.5A Rx Max. audio/Stand-by 500 mA (Internal SP) /77mA Dimensions (W×H×D)(Projections not included): 52.2×111.8×22.3 mm (with BP-278) Weight: 230g (with BP-278)
TRANSMITTER: Output power (at 7.5V): 5.5/2.0/1.0W (Hi/L2/L1) Max. frequency deviation: ±5.0kHz/±2.5kHz (Wide/Narrow) Spurious emissions: 70dB min. Ext. microphone connector: 3-conductor 2.5(d)mm (1/10″)/2.2kΩ
RECEIVER: Sensitivity: 0.25μV typ. (at 12dB SINAD) Squelch sensitivity: 0.25μV typ. (at threshold) Adjacent channel selectivity: 76dB/53dB typ. (Wide/Narrow) Intermodulation: 74dB typ. Spurious response: 70dB min. Audio output power: Internal SP 1500 mW typ. (8Ω load) External SP 400 mW typ. (8Ω load) External speaker connector: 3-conductor 3.5(d)mm (1/8″)/8Ω
PACKAGE INCLUSIONS: 1x Unit 1x Battery 1x Antenna 1x Desktop Charger 1x Belt Clip 1x Manual
WARRANTY: 7 days replacement 1-year for parts and service
SHIPPING: -Shipping time takes 3 to 6 days for Luzon and 6 to 12 days for Vizmin. -Our company does not have control over the shipments after we handed over the shipments. We can only track the shipment status through their website tracking page.
